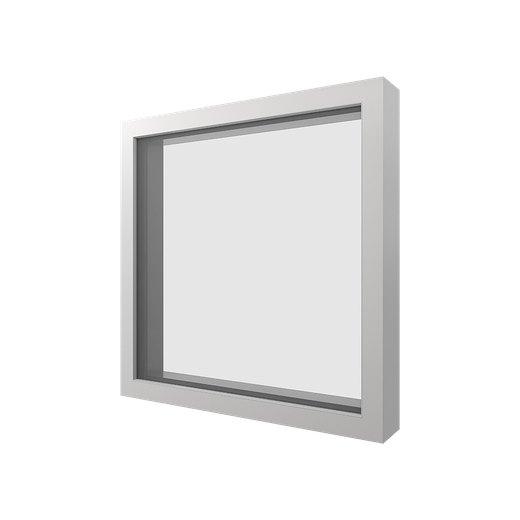

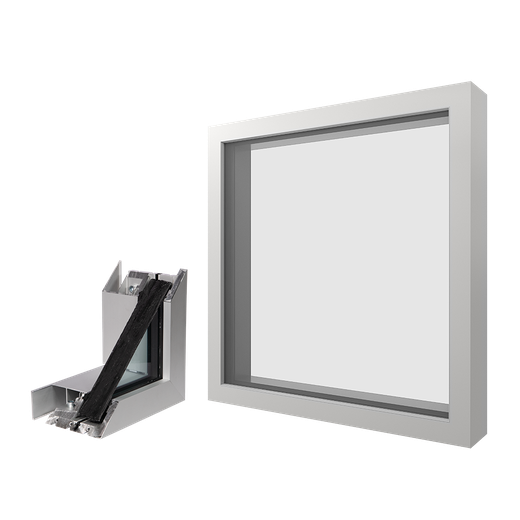

USAW 800 DOS Fe/Br Fixed Aluminum Window

The USAW800 Window Series offers the highest level of ballistic and blast protection available and is tested to meet the Department of State’s (DOS) 5 and 15-minute Forced Entry Requirements. The window offers an improved, fully thermally broken frame design ideal for high security or Department of State (DOS) applications to offer superior protection without compromising energy conservation. The unit is available as a single lite or multi lite fixed window and is shipped glazed and factory assembled.

SAVE FOR LATER ADD TO COMPARE
FEATURES
Windows System Type

Fixed,Curtain Wall,Storefront
Threat Type

Ballistic Resistant Windows,Blast Resistant Windows,Forced Entry Windows,FE/BR Windows
Ballistics Rating

UL 752 Level 1,UL 752 Level 2,UL 752 Level 3,UL 752 Level 4,UL 752 Level 5,UL 752 Level 6,UL 752 Level 7,UL 752 Level 8,NIJ 0108-01 Level I,NIJ 0108-01 Level II/IIa,NIJ 0108-01 Level III/IIIa,DoS SD-STD-01.01 Rev G Rifle .30, 7.62 NATO
Blast Response

ASCE 59-11 - Very Low LOP,ASCE 59-11 - Low LOP,ASCE 59-11 - Medium LOP,ASCE 59-11 - High LOP,GSA/ISC LOP Level I,GSA/ISC LOP Level II,GSA/ISC LOP Level III,GSA/ISC LOP Level IV,GSA/ISC LOP Level V,CSA S850-12 - Very Low LOP,CSA S850-12 - Low LOP,CSA S850-12 - Medium LOP,CSA S850-12 - High LOP,UFC 4-010-01 - Very Low LOP,UFC 4-010-01 - Low LOP,UFC 4-010-01 - Medium LOP,UFC 4-010-01 - High LOP,UFC 3-340-02 - Protection Category 1,UFC 3-340-02 - Protection Category 2,UFC 3-340-02 - Protection Category 3,UFC 3-340-02 - Protection Category 4,PDC-TR 06-08 - Very Low LOP,PDC-TR 06-08 - Low LOP,PDC-TR 06-08 - Medium LOP,PDC-TR 06-08 - High LOP
Forced Entry

DoS SD-STD-01.01 Rev G 5 min,DoS SD-STD-01.01 Rev G 15 min
FE/BR

DoS SD-STD-01.01 Rev G 5 minute,DoS SD-STD-01.01 Rev G 15 minute
Window Options

Deal Trays/Transaction Drawers,Speak-Thru Devices
Thermal Break

Yes
Frame Material

Aluminum
Estimated Lead Time (does not include shipping)

10 - 12 week(s)
Warranty
1 year
All necessary replacement of parts and adjustments not occasioned by accident or misuse shall be made at the vendor’s expense when notified within 30 days after customer receipt of product. All products are warranted for a period of one year from the date of customer receipt. During warranty period, all defects not caused by attack, accident or misuse through fault or negligence by the customer shall be adjusted or replaced at the vendor’s expense (excluding transportation costs).
US REGIONS/COUNTRIES AVAILABLE
  • Canada
  • United States of America
  • Worldwide
DOWNLOADS
Documentation
Brochure Files
USBP_USAW800_Cut_Sheet.pdf
146.50 KB
download Download
USBP_Brochure.pdf
424.61 KB
download Download
Specification files
USBP_USAW800__Specifications.pdf
104.29 KB
download Download
Certification files
USBP_USAW800_Window_FE_Certification.pdf
2.21 MB
download Download
USBP_USAW800_Window_Ballistic_FE_Certification.pdf
116.92 KB
download Download
USBP_USAW800_Window_Ballistic_FE_Certification-1.pdf
204.76 KB
download Download
Drawing files
USBP_USAW800_Generic.dwg
423.54 KB
download Download
USBP_USAW800-Anodized-Angle
